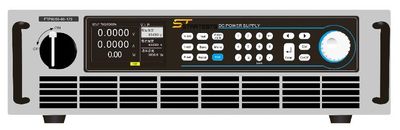

High-Power Bidirectional Programmable DC Power Supply

Key Features

◼Single range:

      Voltage:0~2250V

      Current:0~±4500A

      Power:0~±180kW

◼ The master and slave parallel machines can  extend the power up to 1.8MW;

◼ Voltage accuracy:0.05%+0.05%F.S.;Current accuracy:0.1%+0.1%F.S.;

◼ PF: 0.99,Overall efficiency higher than 93%; regenerative load function, high regenerative efficiency 95%;

◼ Two-way energy transfer, seamless switching across quadrants;

◼ Automatic line loss compensation;

◼ With constant pressure, constant current, constant  power, constant resistance function;

◼ CV/CC Priority mode;

◼ Voltage/current slope can be set;

◼ With voltage output slow rise, slow fall function;

◼ It has the function of charge and discharge;

◼ With the function of sequence and waveform, it can realize the complex voltage and current waveform, such as automobile electronic test  voltage waveform, user-defined;

◼ Battery simulator function (optional);

◼ Equipped with photovoltaic cell array simulation  function (optional);

◼ Over voltage, over current, over power, over temperature, under voltage, power off and other comprehensive protection function;

◼ High pressure isolation digital, analog, monitoring, control interface;

◼ Equipped with a variety of communication interfaces: LAN, USB, optional RS485, CAN or GPIB;

◼ Communication protocols support SCPI, MODBUS, and CAN-OPEN (optional);

◼ Provide communication programming manual, SDK development kit and demonstration of upper computer;

◼ TFT color LCD screen, Chinese, English, traditional menu interface; Intelligent Fan Control;

◼ 3U/18kW high power density, standard 19-inch  rack mounted design;

◼ CE certificated。

Startests Bidirectional DC Power Supply FTB9000 (pdf)下載
