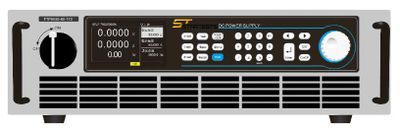

High-Power Programmable DC Power Supply FTP9000 Series

---

■ Output voltages: 80 V up to 2250 V;

■ Output current: 20 A up to 6120 A;

■ Output power: 5 kW up to 180 kW, expandable up to 1800 kW;

■ CV, CC, CP operation modes;

■ Easy Master-Slave parallel;

■ Precision V & I measurement;

■ High speed programming;

■ Programmable sequence;

■ Voltage & current slew rate control;

■ CV / CC priority;

■ Voltage ramp function;

■ Wide operating region for output;

■ Internal resistance simulating;

■ Remote sense compensation;

■ Optional analog programming & monitoringinterface;

■ ±OVP, ±OCP, ±OPP, OTP, ±LVP;

■ Voltage / current / power limit;

■ Standard LAN, USB (serial), optional RS485, GPIB or  CANports;

■ SCPI and ModBus RTU protocol;
